B-Splines and NURBS¶

We start this section by recalling some basic properies about B-splines curves and surfaces. We also recall some fundamental algorithms (knot insertion and degree elevation).

For a basic introduction to the subject, we refer to the books [LP95] and [Far02].

A B-Splines family, $(N_i)_{ 1 \leqslant i \leqslant n}$ of order $k$ , can be generated using a non-decreasing sequence of knots $T=(t_i)_{1\leqslant i \leqslant n + k}$ .

B-Splines series¶

The j-th B-Spline of order $k$ is defined by the recurrence relation:

$N_j^k = w_j^k N_j^{k-1} + ( 1 - w_{j+1}^k ) N_{j+1}^{k-1}$

where,

$w_j^k (x) = \frac{x-t_j}{t_{j+k-1}-t_{j}} \hspace{2cm} N_j^1(x) = \chi_{ \left[ t_j, t_{j+1} \right[ }(x)$

for $k \geq 1$ and $1 \leq j \leq n$ .

We note some important properties of a B-splines basis:

B-splines are piecewise polynomial of degree $p=k-1$ ,
Compact support; the support of $N_j^k$ is contained in $\left[ t_j, t_{j+k} \right]$ ,
If $x \in~ ] t_j,t_{j+1} [$ , then only the B-splines $\{ N_{j-k+1}^k,\cdots,N_{j}^k \}$ are non vanishing at $x$ ,
Positivity: $\forall j \in \{1,\cdots,n \}~~N_j(x) >0, ~~\forall x \in ] t_j, t_{j+k} [$ ,
Partition of unity $\sum_{i=1}^n N_i^{k}(x) = 1, \forall x \in \mathbb{R}$ ,
Local linear independence,
If a knot $t_i$ has a multiplicity $m_i$ then the B-spline is $\mathcal{C}^{(p-m_i)}$ at $t_i$ .

Knots vector families¶

There are two kind of knots vectors, called clamped and unclamped. Both families contains uniform and non-uniform sequences.

The following are examples of such knots vectors

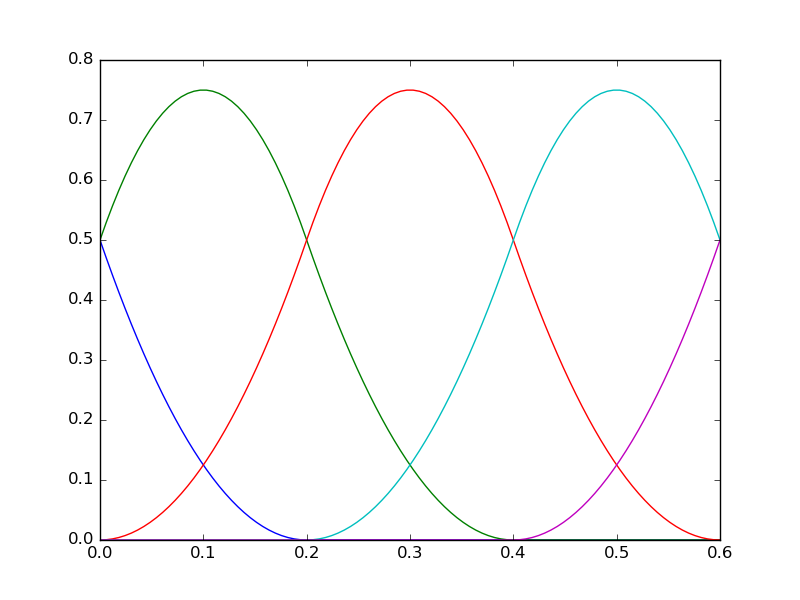

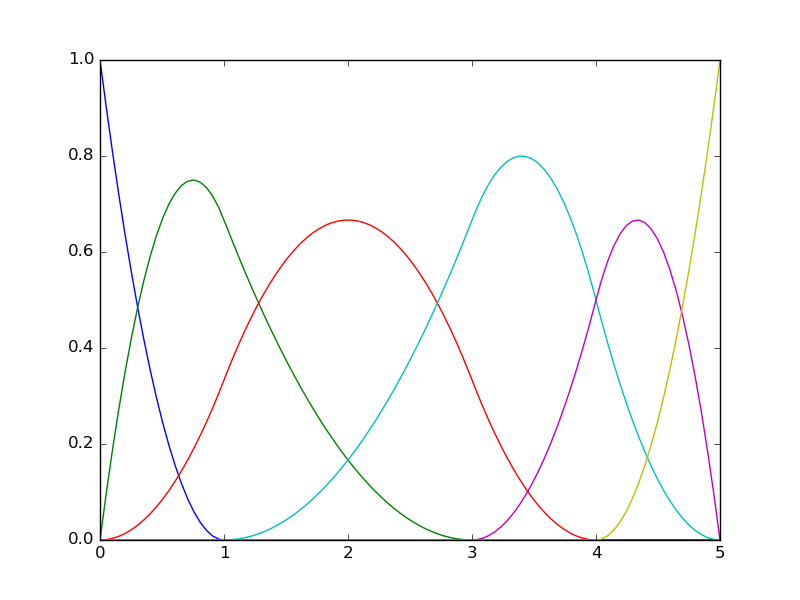

Clamped knots (open knots vector)

uniform

$T_1 &= \{0, 0, 0, 1, 2, 3, 4, 5, 5, 5 \} \\ T_2 &= \{-0.2, -0.2, 0.0, 0.2, 0.4, 0.6, 0.8, 0.8 \}$

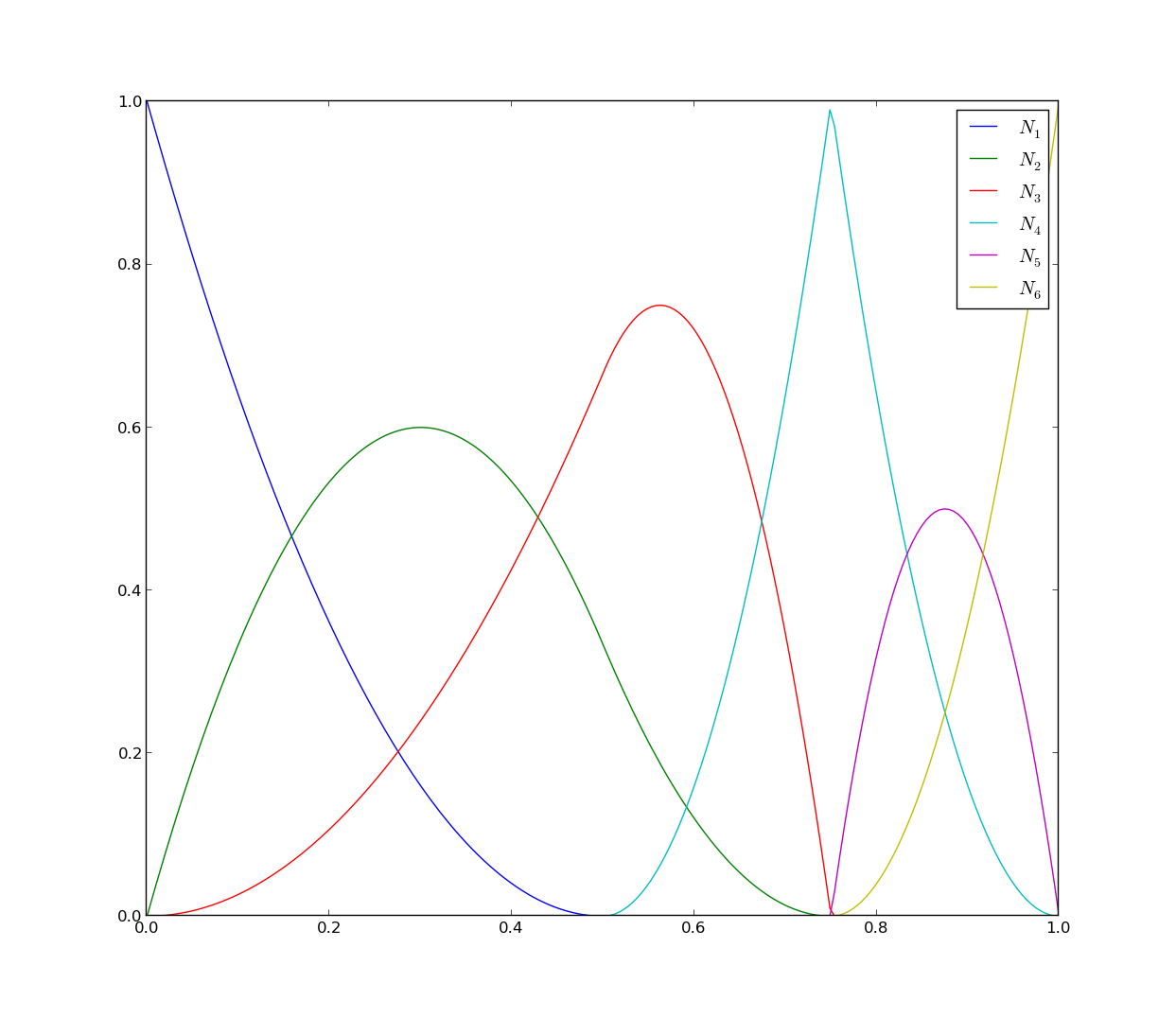

non-uniform

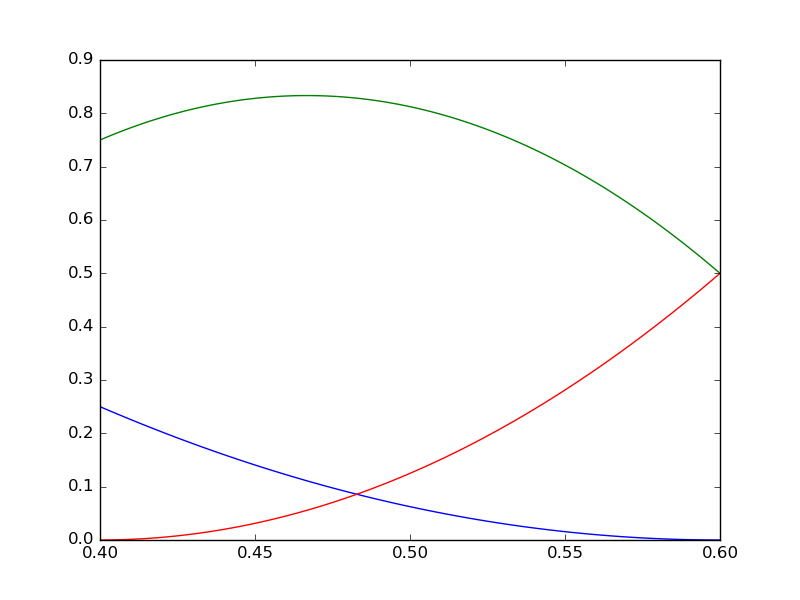

$T_3 &= \{0, 0, 0, 1, 3, 4, 5, 5, 5 \} \\ T_4 &= \{-0.2, -0.2, 0.4, 0.6, 0.8, 0.8 \}$

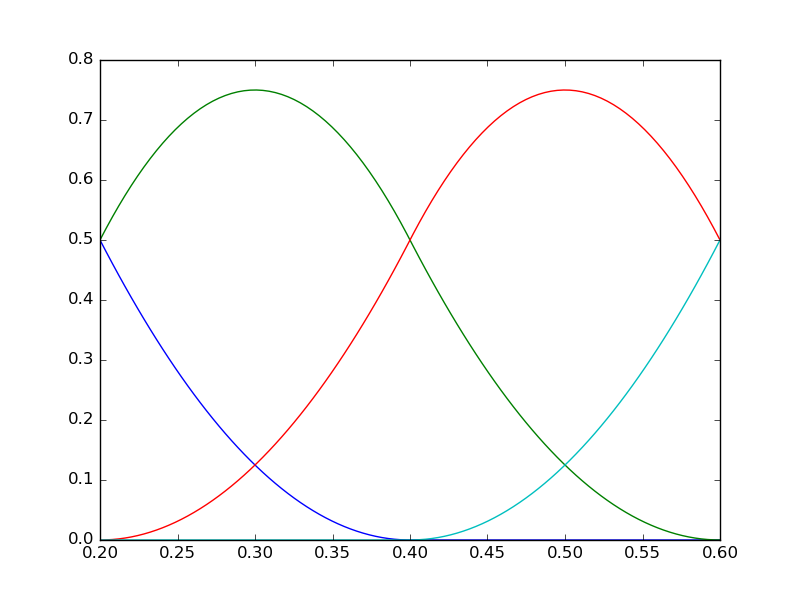

Unclamped knots

uniform

$T_5 &= \{0, 1, 2, 3, 4, 5, 6, 7 \} \\ T_6 &= \{-0.2, 0.0, 0.2, 0.4, 0.6, 0.8, 1.0 \}$

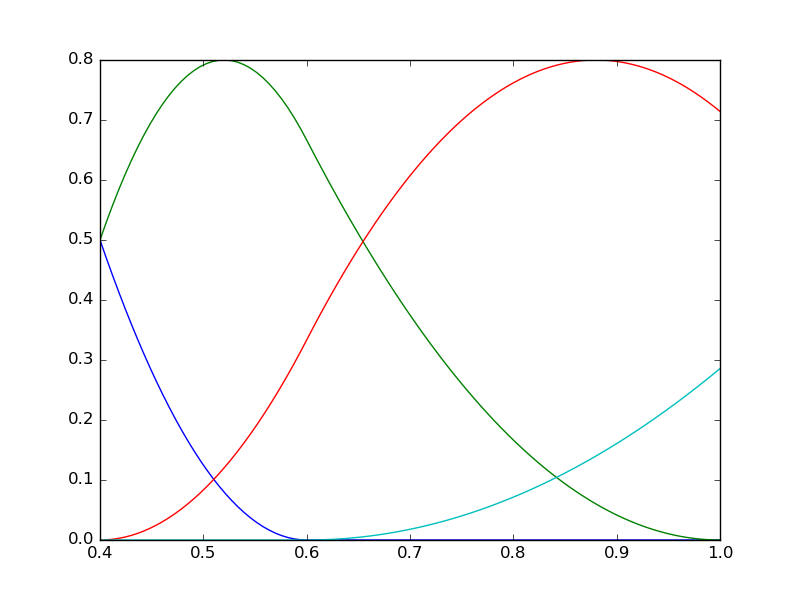

non-uniform

$T_7 &= \{0, 0, 3, 4, 7, 8, 9 \} \\ T_8 &= \{-0.2, 0.2, 0.4, 0.6, 1.0, 2.0, 2.5 \}$

B-Spline curve¶

The B-spline curve in $\mathbb{R}^d$ associated to knots vector $T=(t_i)_{1\leqslant i \leqslant n + k}$ and the control polygon $(\mathbf{P}_i)_{ 1 \leqslant i \leqslant n}$ is defined by :

$\mathcal{C}(t) = \sum_{i=1}^n N_i^k(t) \textbf{P}_i$

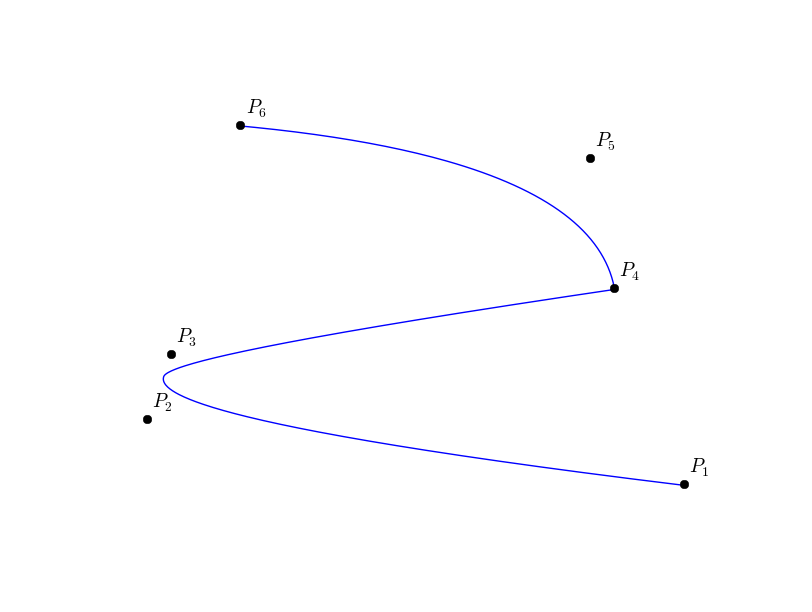

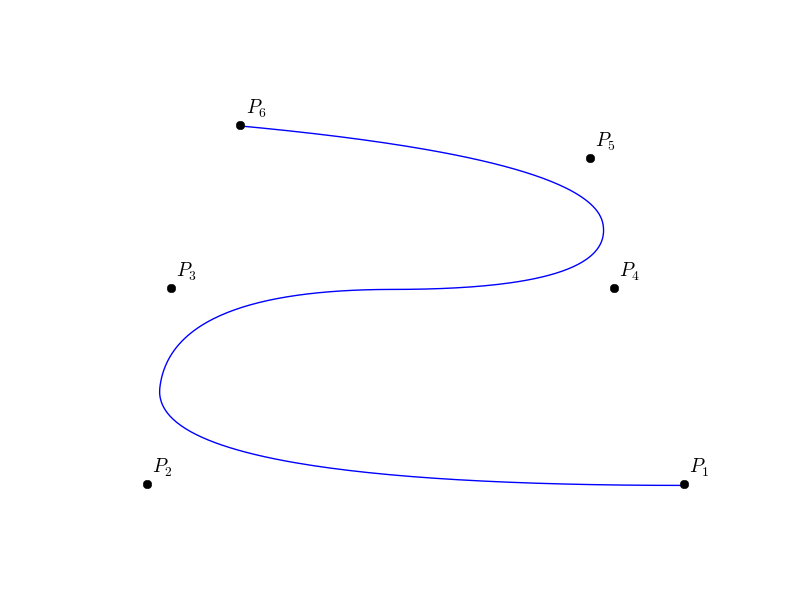

In (Fig. ref{figBSplineCurve}), we give an example of a quadratic B-Spline curve, and its corresponding knot vector and control points.

We have the following properties for a B-spline curve:

If $n=k$ , then $\mathcal{C}$ is just a B’ezier-curve,
$\mathcal{C}$ is a piecewise polynomial curve,
The curve interpolates its extremas if the associated multiplicity of the first and the last knot are maximum (i.e. equal to $k$ ), i.e. open knot vector,
Invariance with respect to affine transformations,
Strong convex-hull property:

if $t_i \leq t \leq t_{i+1}$ , then $\mathcal{C}(t)$ is inside the convex-hull associated to the control points $\mathbf{P}_{i-p},\cdots,\mathbf{P}_{i}$ ,

Local modification : moving the $i^{th}$ control point $\mathbf{P}_{i}$ affects $\mathcal{C}(t)$ , only in the interval $[t_i,t_{i+k}]$ ,
The control polygon approaches the behavior of the curve.

Note

In order to model a singular curve, we can use multiple control points : $\mathbf{P}_{i}=\mathbf{P}_{i+1}$ .

Multivariate tensor product splines¶

Let us consider $d$ knot vectors $\mathcal{T} = \{T^1,T^2,\cdots,T^d\}$ . For simplicity, we consider that these knot vectors are open, which means that $k$ knots on each side are duplicated so that the spline is interpolating on the boundary, and of bounds $0$ and $1$ . In the sequel we will use the notation $I=[0,1]$ . Each knot vector $T^i$ , will generate a basis for a Schoenberg space, $\mathcal{S}_{k_{i}}(T^i,I)$ . The tensor product of all these spaces is also a Schoenberg space, namely $\mathcal{S}_{\mathbf{k}}(\mathcal{T})$ , where $\mathbf{k}=\{k_1,\cdots,k_d\}$ . The cube $\mathcal{P}=I^d=[0,1]^d$ , will be referred to as a patch.

The basis for $\mathcal{S}_{\mathbf{k}}(\mathcal{T})$ is defined by a tensor product :

$N_{\mathbf{i}}^{\mathbf{k}} := N_{i_1}^{k_1} \otimes N_{i_2}^{k_2} \otimes \cdots \otimes N_{i_d}^{k_d}$

where, $\mathbf{i}=\{i_1,\cdots , i_d \}$ .

A typical cell from $\mathcal{P}$ is a cube of the form : $Q_{\mathbf{i}}=[\xi_{i_1}, \xi_{i_1+1}] \otimes \cdots \otimes [\xi_{i_d}, \xi_{i_d+1}]$ .

Deriving a B-spline curve¶

The derivative of a B-spline curve is obtained as:

$\mathcal{C}^{\prime}(t) = \sum_{i=1}^{n} {N_{i}^{k}}^{\prime}(t) \mathbf{P}_i = \sum_{i=1}^{n} \left(\frac{p}{t_{i+p}-t_{i}}N_{i}^{k-1}(t) \mathbf{P}_i - \frac{p}{t_{i+1+p}-t_{i+1}}N_{i+1}^{k-1}(t) \mathbf{P}_i \right) = \sum_{i=1}^{n-1} {N_{i}^{k-1}}^{\ast}(t) \mathbf{Q}_i$

where $\mathbf{Q}_i = p \frac{\mathbf{P}_{i+1} - \mathbf{P}_i}{t_{i+1+p}-t_{i+1}}$ , and $\{{N_{i}^{k-1}}^{\ast},~~1 \leq i \leq n-1\}$ are generated using the knot vector $T^{\ast}$ , which is obtained from $T$ by reducing by one the multiplicity of the first and the last knot (in the case of open knot vector), i.e. by removing the first and the last knot.

More generally, by introducing the B-splines family $\{ {N_{i}^{k-j}}^{\ast}, 1 \leq i \leq n-j \}$ generated by the knots vector $T^{j^{\ast}}$ obtained from $T$ by removing the first and the last knot $j$ times, we have the following result:

proposition¶

The $j^{th}$ derivative of the curve $\mathcal{C}$ is given by

$\mathcal{C}^{(j)}(t) = \sum_{i=1}^{n-j} {N_{i}^{k-j}}^{\ast}(t) \mathbf{P}_i^{(j)}`$

where, for $j>0$

$\mathbf{P}_i^{(j)} = \frac{p-j+1}{t_{i+p+1}-t_{i+j}} \left( \mathbf{P}_{i+1}^{(j-1)} - \mathbf{P}_i^{(j-1)} \right) \\ \mbox{and} ~ ~ ~ \mathbf{P}_i^{(0)} = \mathbf{P}_i.$

By denoting $\mathcal{C}^{\prime}$ and $\mathcal{C}^{\prime\prime}$ the first and second derivative of the B-spline curve $\mathcal{C}$ , it is easy to show that:

We have,

$\mathcal{C}^{\prime}(0) = \frac{p}{t_{p+2}} \left(\mathbf{P}_{2} - \mathbf{P}_1\right)$ ,
$\mathcal{C}^{\prime}(1) = \frac{p}{1-t_{n}} \left(\mathbf{P}_{n} - \mathbf{P}_{n-1}\right)$ ,
$\mathcal{C}^{\prime\prime}(0) = \frac{p(p-1)}{t_{p+2}} \left( \frac{1}{t_{p+2}}\mathbf{P}_{1} - \{ \frac{1}{t_{p+2}} + \frac{1}{t_{p+3}} \} \mathbf{P}_2 + \frac{1}{t_{p+3}}\mathbf{P}_{3} \right)$ ,
$\mathcal{C}^{\prime\prime}(1) = \frac{p(p-1)}{1-t_{n}} \left( \frac{1}{1-t_{n}}\mathbf{P}_{n} - \{ \frac{1}{1-t_{n}} + \frac{1}{1-t_{n-1}} \} \mathbf{P}_{n-1} + \frac{1}{1-t_{n-1}}\mathbf{P}_{n-2} \right)$ .

Example¶

Let us consider the quadratic B-spline curve associated to the knots vector $T=\{000~\frac{2}{5}~\frac{3}{5}~111 \}$ and the control points $\{ P_i, 1 \leq i \leq 5 \}$ :

$\mathcal{C}(t) = \sum_{i=1}^{5} {N_{i}^{3}}^{\prime}(t) \mathbf{P}_i$

we have,

$\mathcal{C}^{\prime}(t) = \sum_{i=1}^{4} {N_{i}^{2}}^{\ast}(t) \mathbf{Q}_i$

where

$\mathbf{Q}_1 = 5 \{\mathbf{P}_{2} - \mathbf{P}_1\}, ~~~~\mathbf{Q}_2 = \frac{10}{3} \{ \mathbf{P}_{3} - \mathbf{P}_2\}, \\ \mathbf{Q}_3 = \frac{10}{3} \{ \mathbf{P}_{4} - \mathbf{P}_3\},~~~~\mathbf{Q}_4 = 5 \{\mathbf{P}_{5} - \mathbf{P}_4\}.$

The B-splines $\{ {N_{i}^{2}}^{\ast},~~1 \leq i \leq 4\}$ are associated to the knot vector $T^{\ast}=\{00~\frac{2}{5}~\frac{3}{5}~11 \}$ .

Fundamental geometric operations

By inserting new knots into the knot vector, we add new control points without changing the shape of the B-Spline curve. This can be done using the DeBoor algorithm [dB01]. We can also elevate the degree of the B-Spline family and keep unchanged the curve [HHM05]. In (Fig. ref{refinement_curve_B_Spline}), we apply these algorithms on a quadratic B-Spline curve and we show the position of the new control points.

Knot insertion¶

After modification, we denote by $\widetilde{n}, \widetilde{k}, \widetilde{T}$ the new parameters. $(\textbf{Q}_i)$ are the new control points.

One can insert a new knot $t$ , where $t_j \leqslant t < t_{j+1}$ . For this purpose we use the DeBoor algorithm [dB01]:

$\widetilde{n} = n+1 \\ \widetilde{k} = k \\ \widetilde{T} = \{ t_1,.., t_j, t, t_{j+1},.., t_{n+k}\} \\ \alpha_i = \left\{\begin{array}{cc}1 & 1 \leqslant i \leqslant j-k+1 \\\frac{t-t_i}{t_{i+k-1}-t_i} & j-k+2 \leqslant i \leqslant j \\0 & j+1 \leqslant i \end{array}\right. \\ \textbf{Q}_i = \alpha_i \textbf{P}_i + (1-\alpha_i) \textbf{P}_{i-1}$

Many other algorithms exist, like blossoming for fast insertion algorithm. For more details about this topic, we refer to [NT93].

Order elevation¶

We can elevate the order of the basis, without changing the curve. Several algorithms exist for this purpose. We used the one by Huang et al. [PP91], [HHM05].

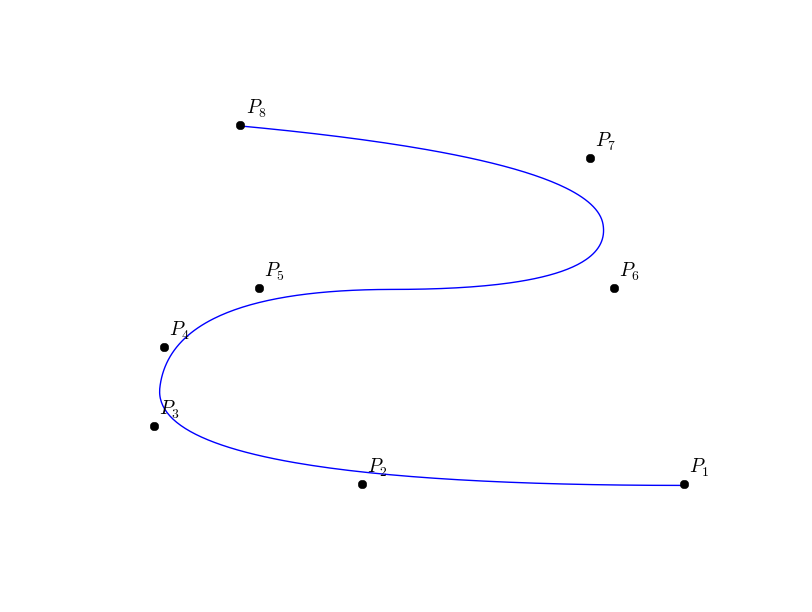

A quadratic B-spline curve and its control points. The knot vector is $T = \{ 000, \frac{1}{4}, \frac{1}{2}, \frac{3}{4}, 1 1 1 \}$ .

The curve after a h-refinement by inserting the knots $\{ 0.15, 0.35\}$ while the degree is kept equal to $2$ .

The curve after a p-refinement, the degree was raised by $1$ (using cubic B-splines).

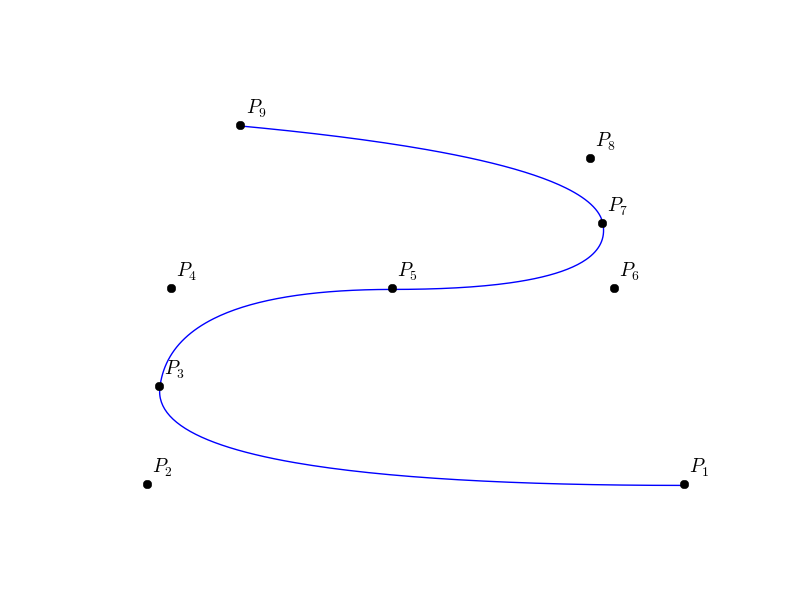

The curve after duplicating the multiplicity of the internal knots $\{ \frac{1}{4}, \frac{1}{2}, \frac{3}{4} \}$ , this leads to a B’ezier description. We can then, split the curve into $4$ pieces (sub-domains), each one will corresponds to a quadratic B’ezier curve.

Translation¶

Rotation¶

Todo

not yet available

Scaling¶

Todo

not yet available
